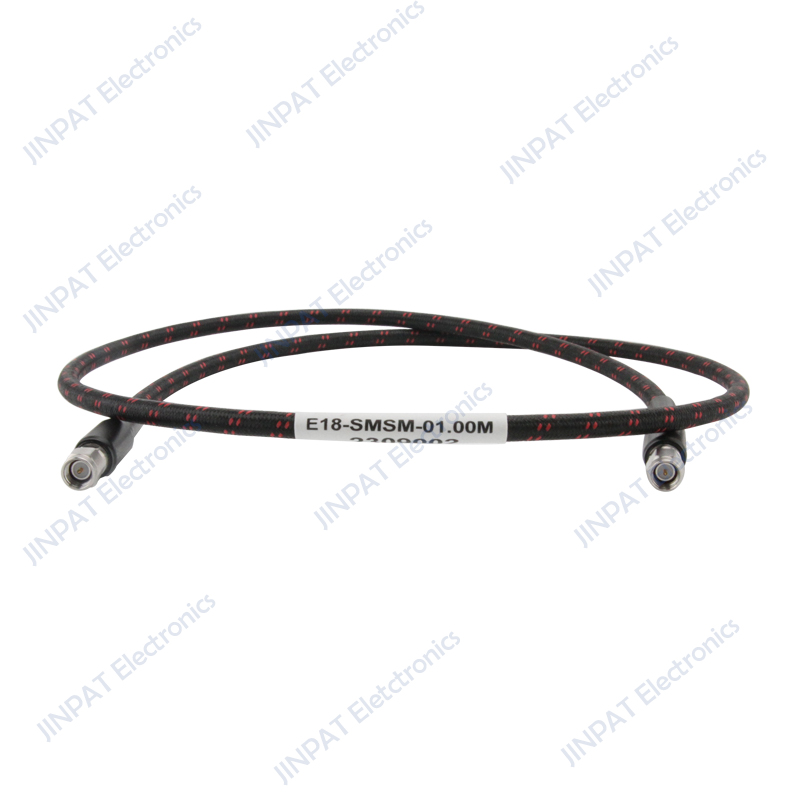

E18L-SMSM-01.00M

share
copy Link
Facebook
Twitter
LinkedIn
Insertion loss 1.32dB
Frequency range DC-18GHz
VSWR,max 1.3
Consult immediately
DetailInstallationReview(0)

Commonly used high frequency lines (with armor, used for dragging, anti-trampling, and high-end equipment connections).




Product specification
Interface TypeN-F/N-M(50Ω)Body MaterialsStainless steel/Brass/Be-Cu/PTFE
Frequency rangeDC-18GHzPlatingPassivation/Gold
VSWR,Max1.3Durability＞500cycles
Insertion loss,Max1.32dBTemperature range﹣40~+85°C
Voltage rating335V(rms)RoHS 2002/95/ECCompliant
Dielectric withstanding   voltage500VCoupling nut retention＞100lbs
Insulation resistance5000MΩMin.bending radius，dynamic80mm
