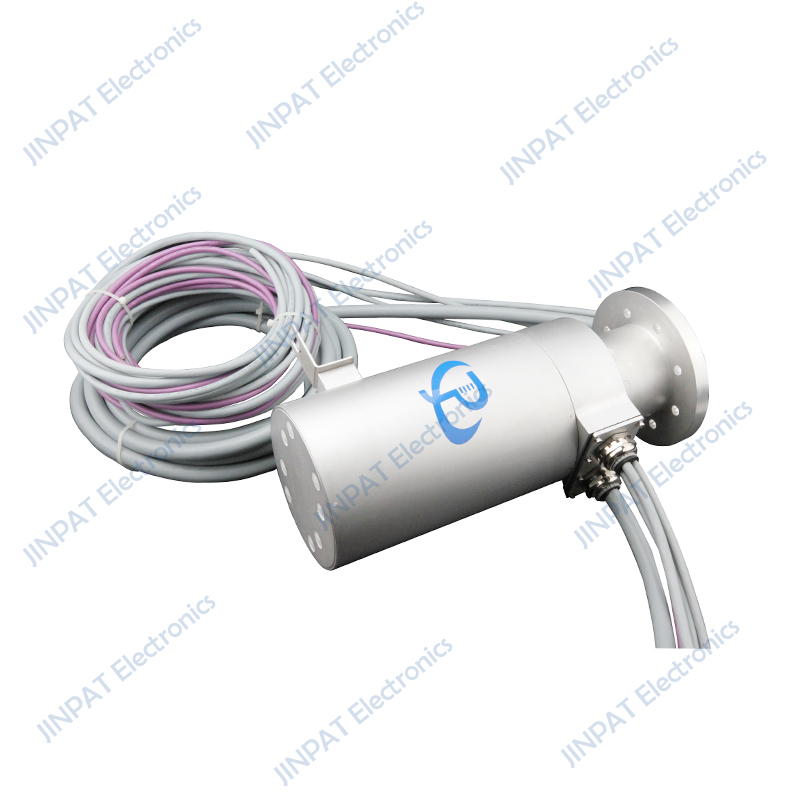

Wind Power Slip Ring LPW-05-SPX(JP06-182-03)
The primary function of a wind power slip ring is to enable the transmission of electrical energy generated by the wind turbine's rotor to the stationary part of the turbine, where it can be further processed, converted, and distributed. This electrical energy is typically in the form of three-phase alternating current (AC) generated by the wind turbine's generator.
Wind power slip rings are designed to handle high currents and voltages while maintaining a reliable electrical connection. They are built to withstand the harsh environmental conditions often encountered in wind turbine applications, including strong winds, vibrations, temperature variations, and exposure to dust and moisture.
wind power slip rings play a crucial role in enabling the efficient and reliable operation of wind turbines by facilitating the transfer of electrical energy from the rotating components to the stationary components of the system.
| Electronic & Electri | Mechanical | ||
| Tatal | 24 CKT | Working Speed | 0~25rpm |
| Detail | 4×63A,3×20A,2×12A,6×2A,4×Signal | Inner Diameter | / |
| Rating Voltage | 400VAC/230VAC/240VDC | Contact Material | Copper Graphite/Precious |
| Dielectric Strength | 1500VAC@50Hz(400VC),500VAC@50Hz(other) | Housing Material | Aluminium Alloy |
| Insulation Resistance | ≥500MΩ@500VDC（400VAC）,≥100MΩ@300VDC（other） | Lead Wire Length | See Wiring Diagram |
| Environment | Remarks | ||
| Working Temperature | -30°C—+60°C （Storage Temperature:-40°—+60°C） | Application | Wind Power Generator |
| Working Humidity | 0~100％RH | Other | / |
| IP | IP54（Horizontal Installation） | Note:“P”stands for power,"S"stands for signal. | |
