N-F-N-F(75Ω）Typical High Frequency Auxiliaries
share
DetailInstallationReview(0)

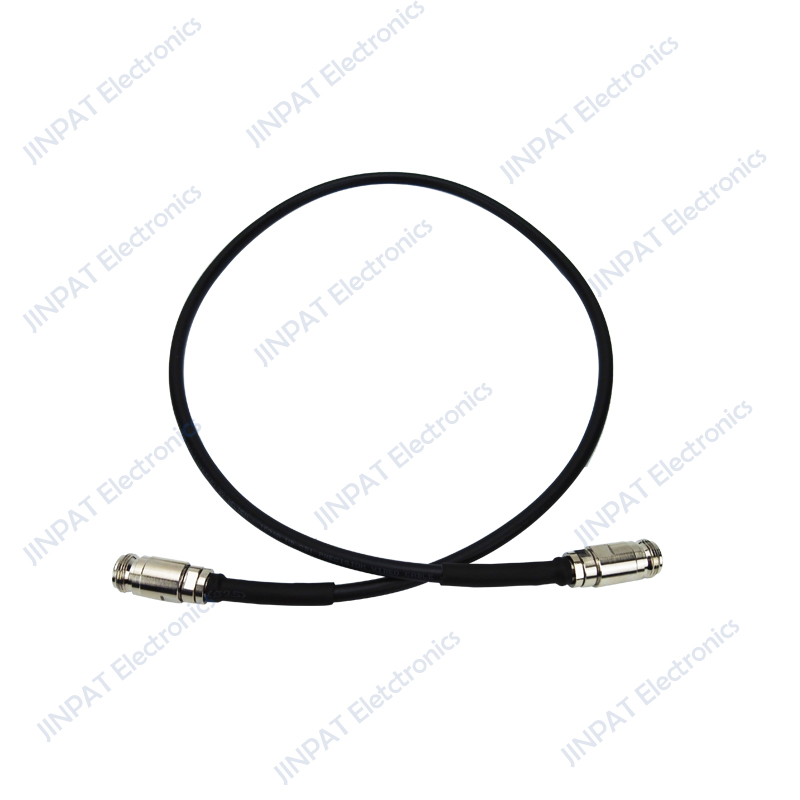

N-F-N-F(75Ω）Typical High Frequency Auxiliaries（HD video cable 12G-SDI）
High Frequency Phase-stable Low Loss Coaxial Cable Series,
High Frequency Cable Auxiliaries and High Frequency Test Cable Auxiliaries are broadly applied in aerospace industry,
Electronic countermeasures system(ECM), high frequency anechoic system connection and 5G mobile communication, etc.
| Product specification | |||
| Interface Type | N-F/NM(75Ω) | Body Materials | BRASS |
| Frequency range | DC-12GHz | Insulator Material | PTFE |
| VSWR,Max | 1.3 | Durability | ＞500cycles |
| Insertion loss,Max | 1.0dB | Operation Temperature | -30~+75°C |
| Voltage rating | 250V(rms) | Storage Temperature | -30~+75°C |
Dielectric withstanding voltage | 1000V | Humidity(Operation) | 95% |
| Insulation resistance | 5000MΩ | Humidity(Storage) | 95% |
