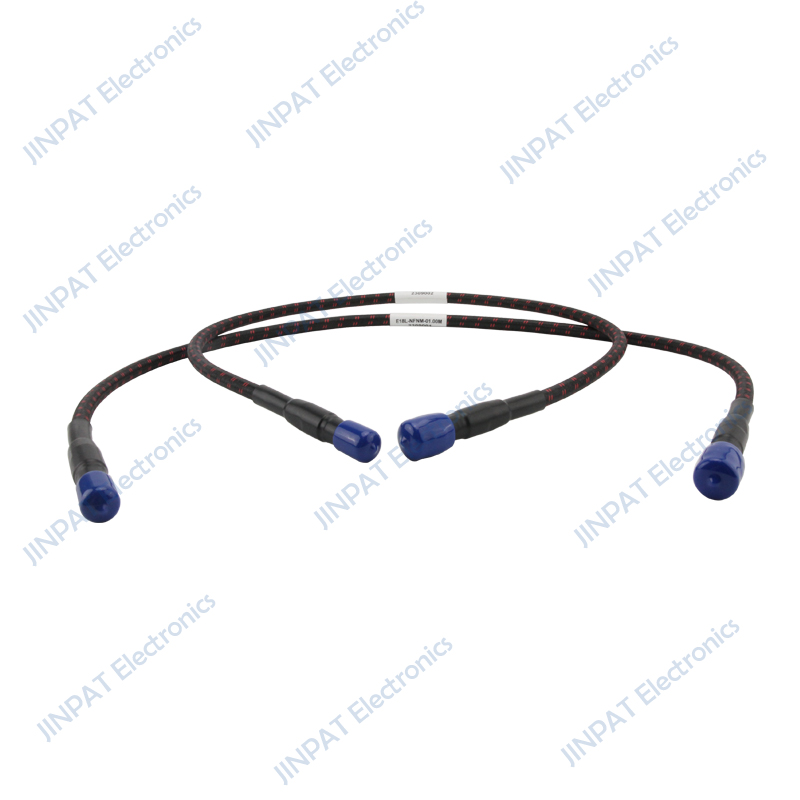

Low loss lines (commonly used in microwave chambers, mainly used for long-distance connections, increasing protection and prolonging the service life of the product).
| Product specification | |||
| Interface Type | N-F/N-M(50Ω) | Body Materials | Stainless steel/Brass/Be-Cu/PTFE |
| Frequency range | DC-18GHz | Plating | Passivation/Gold |
| VSWR,Max | 1.3 | Durability | ＞500cycles |
| Insertion loss,Max | 0.98dB | Temperature range | ﹣40~+85°C |
| Voltage rating | 335V(rms) | RoHS 2002/95/EC | Compliant |
| Dielectric withstanding voltage | 500V | Coupling nut retention | ＞100lbs |
| Insulation resistance | 5000MΩ | Min.bending radius，dynamic | 110mm |
