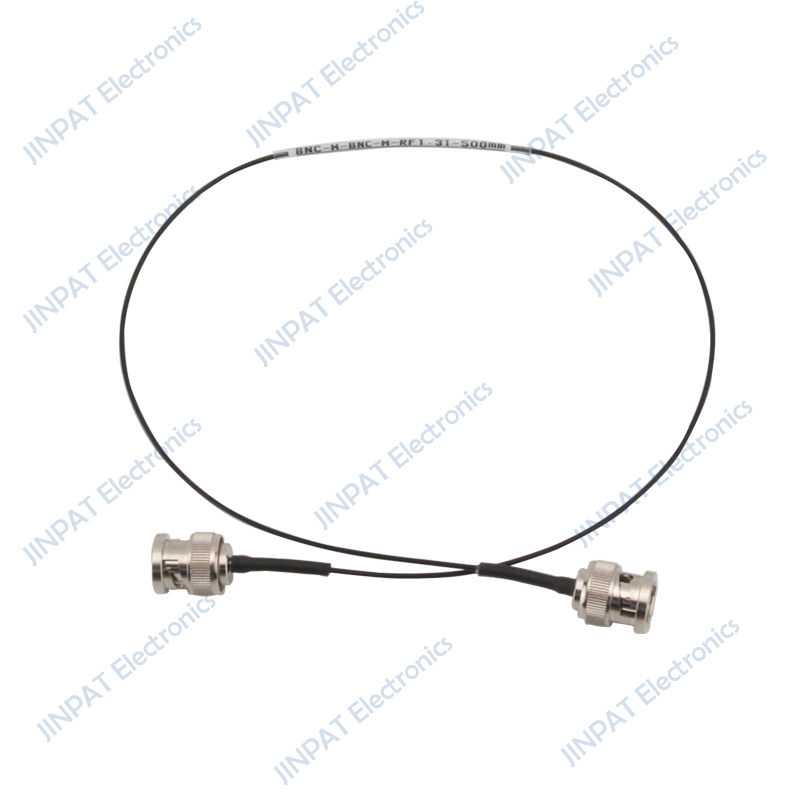

BNC-M-BNC-M-RF1.32-500mm

share
copy Link
Facebook
X
LinkedIn
Insertion loss 2.8dB
Frequency range DC-3GHz
VSWR,max 1.5
Consult immediately
DetailInstallationReview(0)




Product specification
Interface TypeBNC-M/BNC-M(75Ω)Body MaterialsBRASS/PTFE
Frequency rangeDC-3GHzPlatingGOLD/NICKEL
VSWR,Max1.5Durability＞500cycles
Insertion loss,Max2.8dBTemperature range﹣40~+85°C
Voltage rating170V(rms)RoHS 2002/95/ECRoHS compliant
Dielectric withstanding   voltage250VCable retention force＞2lbs
Insulation resistance1000MΩMin.bending radius，repeated14mm
