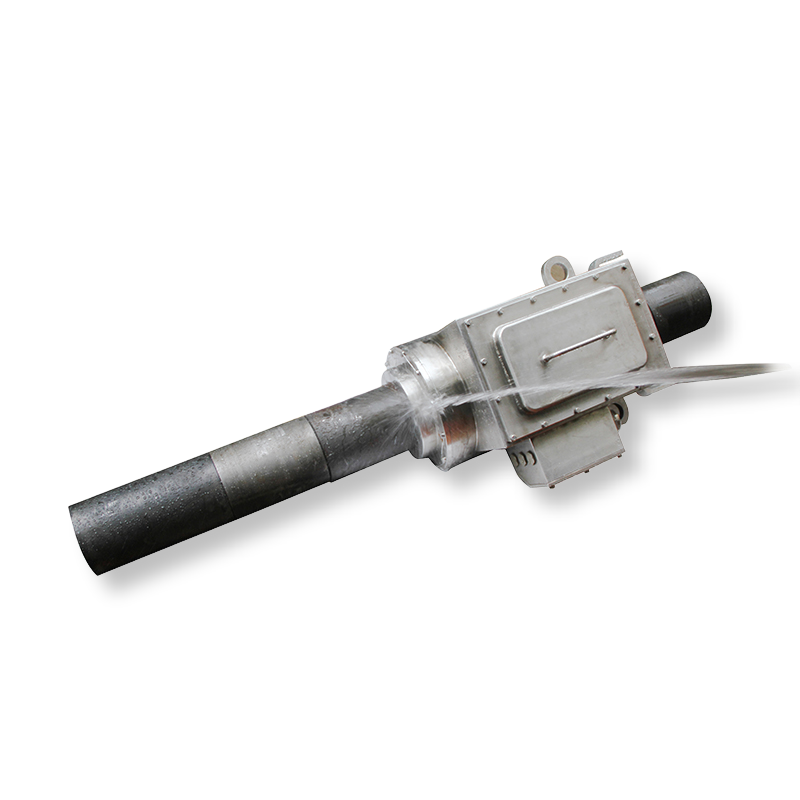

Slip Ring for Offshore Oil Drilling Platforms
Engineered for harsh oil drilling environments, the LPA000-02120-01PE High Current Slip Ring boasts ExdⅡ explosion-proof certification and 69MPa waterproof sealing, ensuring reliability under extreme pressure. Designed to withstand 2200V high-voltage demands, its rugged construction guarantees stable performance in corrosive, high-risk offshore drilling operations.
Electronic & Electric | Mechanical | |||
Circuits | Total | 2+1 | Working Speed | 200RPM |
Detail | 2*120A+1*PE | Bore Diameter | / | |
Rating Voltage | 2000VAC | Contact Material | Copper Stone Ink | |
Dielectric Strength | 6000VAC@50Hz | Housing | stainless steel316/42CrMo | |
Insulation Resistance | 1000MΩ@1000VDC | Installation | Vertical Installation | |
Environment | Remarks | |||
Working Temperature | -20°C~+65°C | Application | Offshore Oil Drilling Platforms | |
IP | 69Mpa meets waterproof requirements | Other | / | |
JINPAT Slip Rings: Powering Safety and Precision in Extreme Conditions.
