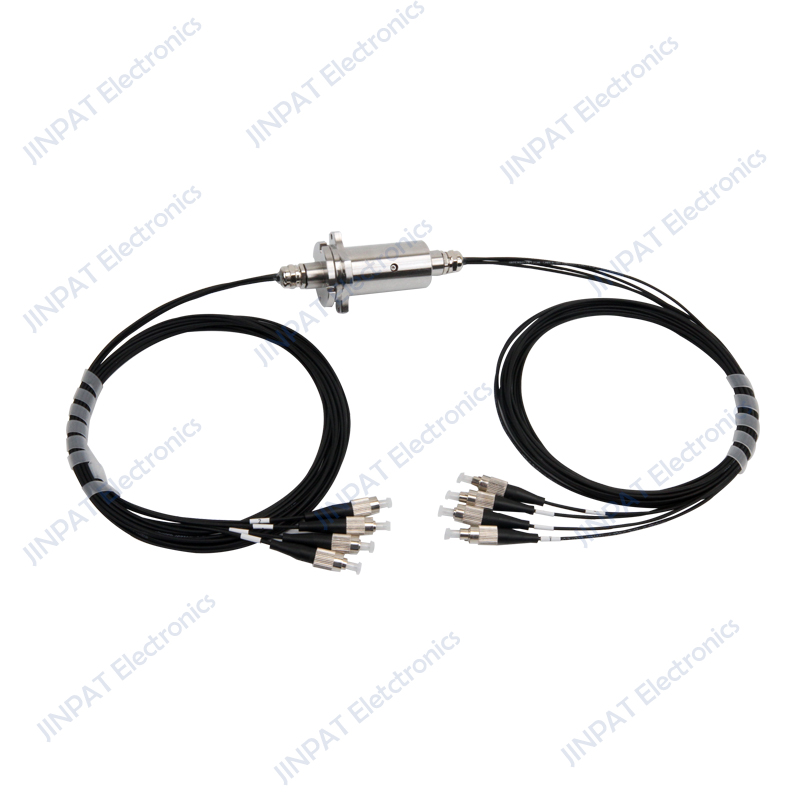

LPFO-07C Fiber Optic Rotary Joints
share
DetailInstallationReview(0)
Typical Use
Remotely operated vehicles
Oceanographic winches
Cable reels
Towed arrays and dipping sonar
Undersea telemetry
Robotics
Options
Supply and installation of customer specific connectors and fibers
Customization of mounting configurations, housing materials and drive couplers
Fluid filling and pressure compensation for underwater use
| Specifications | |||
| Fiber types | SM or MM | Maximum speed | 300rpm |
| Channel number | 2~7 | Package style | Pigtails on both ends |
| Wavelength range | SM:1310/1550nm MM:850/1300nm | Weight, approx | 340g （No tail cable andconnection included） |
| Insertion loss | ＜4dB | Jacket types | 2.0mm(Kevlar/TPU or armor) |
| Insertion loss ripple | ＜2dB | Connector types | FC/SC/ST/LC(PC or APC) |
| Return loss | SM:≥40dBMM:≥25dB | Estimated life cycle | ＞100 million revolutions |
| Crosstalk | ≥50dB | Vibration | MIL-STD-167-1A |
| Max Optical power | 23dBm | Mechanical shock | MIL-STD-810G |
| Working temperature | -20~+65℃(Industrial grade) | IP rating | IP54 or IP67 |
| Storage temperature | -55~+85℃ | ||
Optical fiber slip ring product outline drawing
Havn't found standard size of large current slip rings to fit my application?
1) View "Customized Solutions", you can find more large current slip rings solutions.
2) Customize your dimension for large current slip rings and Contact us : sales@electricslipring.com
