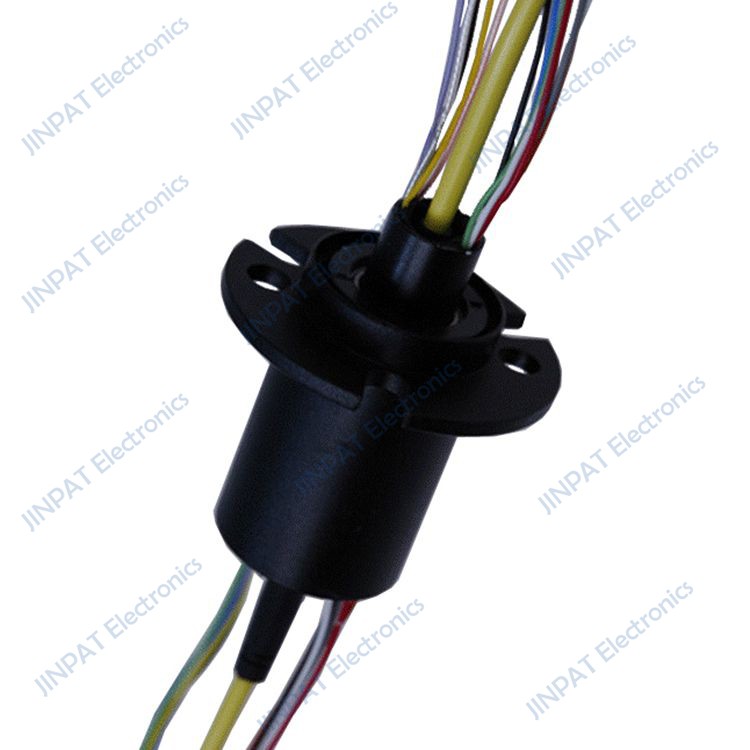

LPC-1F1202 Fiber Optic Slip Ring
LPC-1F1202 has 1 optical channel and 12 power channels. It is a slip ring model that can function smoothly in harsh environments with no contact, no friction and therefore attain a super long product life. Hybrid transmission of various signals(video, serial data and network data，etc.) Adopting fiber optics as medium allows no leakage and interference-free reliable transmission up to a hundred miles. The slip ring is light and compact, and is able to integrate with electrical slip rings. System upgrade is very convenient and flexible.
Electronic & Electric | Mechanical | |||
Circuits | Total | 12CKT | Working Speed | 0~300rpm |
Detail | 12x2A | Dynamic Resistance Fluctuation Value | ≤35MΩ | |
Rating Voltage | 0~240V AC/DC | Contact Material | Gold to Gold | |
Dielectric Strength | 500VAC@50Hz(P) ≥100VAC@50Hz(S) | Housing Material | Aluminum Alloy | |
Insulation Resistance | ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) | Lead Wire Length | Rotor:250+50/-0mm | |
Environment | Remarks | |||
Working Temperature | -20°C~+60°C | Application | / | |
Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note: "P" stands for power, "S" stands for signal. | ||
| Coaxial Parameter | ||||
| Optical fiber type | Single mode（9/125um） | The bending radius | 50mm | |
| Working wavelength | 1310/1550nm | Jacket types | ⌀3（TPU） | |
| Insertion Loss | ＜2.0dB | Connect Model | / | |
| Insertion Loss-WOW | ＜0.5dB | Optical fiber Length | Rotor：250±500mm Stator：250±500mm | |
Return loss | ＞40dB | |||
| Light power | 23dBm | |||
