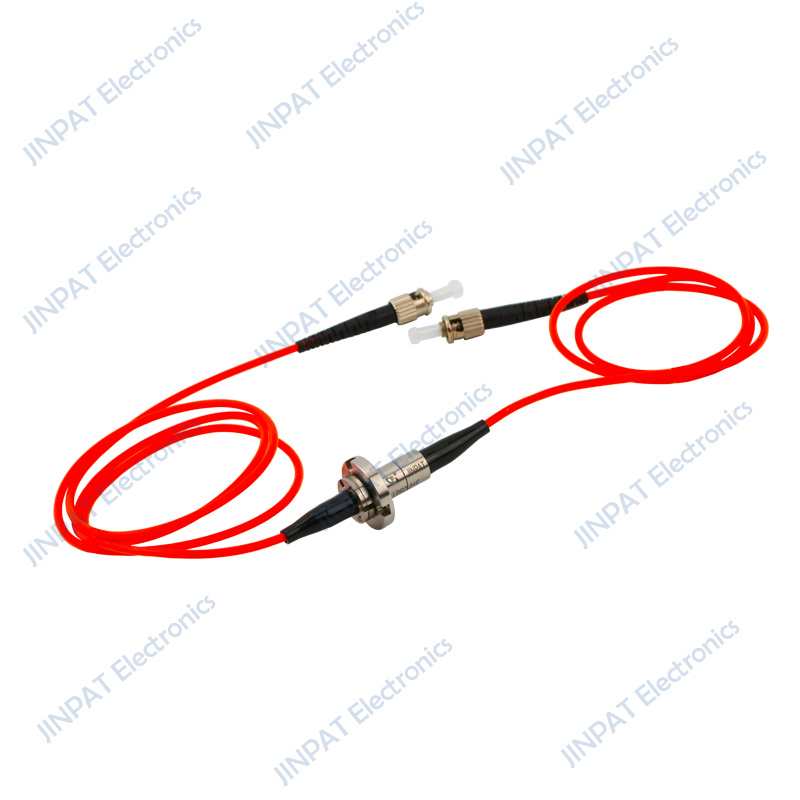

LPFO-01E Fiber Optic Slip Ring

copy Link

Facebook

Number of Circuits 1

Lead Size Φ10/Φ24*18

Wavelength range 850-1650

Insertion loss Single-Channel＜2dB

Insertion loss ripple Single-Channel＜0.5dB

Return Loss ＞40dB

Optional Single can be customized,housing material and driving connector are optional

Consult immediately

DetailInstallationReview(0)

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.

Specifications
Fiber types	SM or MM	Connector types	FC/SC/ST/LC(PC or APC)
Channel number	1	Estimated life cycle	＞200 million revolutions
Wavelength range	SM:1270-1650nmMM:650-1300nm	Vibration	MIL-STD-167-1A
Insertion loss	＜2dB	Mechanical shock	MIL-STD-810G
Insertion loss ripple	＜0.5dB	IP rating	IP65 or IP68
Weight, approx	40g（No tail cable andconnection included）	Jacket types	0.9/2/3mm(Kevlar/TPU or Armor)
Return loss	≥40dB	Maximum speed	2000rpm or More
Max Optical power	23dBm	Working temperature	-45～+75℃
Package style	Pigtails on both ends	Storage temperature	-55~+85℃
