LPA000-034000-01PE-0606-0203-72S-11L-01A
Highlights:
* Major Function: high current power rings, low current power rings, signal rings and gas-liquid channels in one integrated solution.
* Best shielding design based on multi channels to cope with interference between weak electrical signals including temperature sensor signal and position sensor signal.
* Gas-liquid pressure: 1MPa.
* Against complicated marine corrosive environment.
* Unique triangle base design to specifically applicable for operation in swaying and tilting movement condition like vessels or ships.
Damp-Heat Test passed and applicable for IEC60068-2-30 standard, vibration test passed and applicable for IEC60068-2-6 standard.

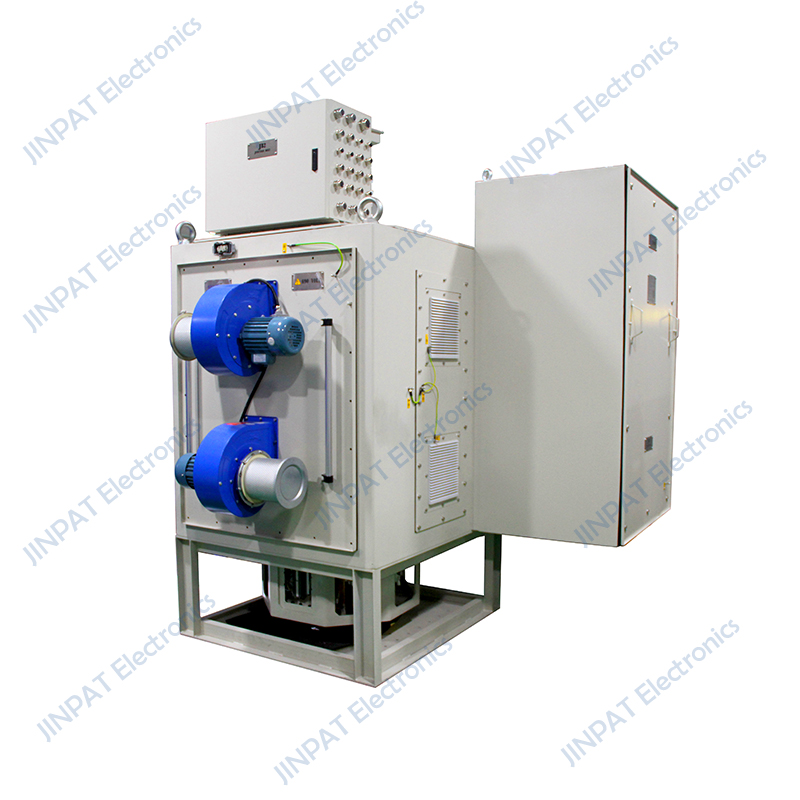

3MW high power integrated slip ring for ship podded propeller is a model with high power capacity and compact structure. Independent modular design, interference-free transmission of gas, fluid, signals and power. This slip ring product passes technical standards published by CSS and other international authorities like Bureau Veritus.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 137CKT | Working Speed | 0~3RPM |
| Detail | 3*4000A+1*400A+3*8A+ 2*3A+54*250MA+ 18*0.3A+38*signal +12*The standby | A hole diameter | / | |
| Rating Voltage | 690VAC/340V/220VAC/30V/24V | Contact Material | High-end Copper Graphite/ Precious Metal | |
| Dielectric Strength | 2500VAC@60Hz(P) | Housing | Q235 Spray Coating(RAL 7032) | |
| Insulation Resistance | ≥500MΩ@1000VDC(P) | installation | Vertical Installation | |
| Environment | Remarks | |||
| Working Temperature | -10°C~+50°C | Application | Ship Podded Propeller | |
| Working Humidity | ≥95%RH | |||
| IP | IP54 | Other | / | |
For more details about this slip ring product, please contact JINPAT.
We will provide you with a free and satisfactory customized solution!
