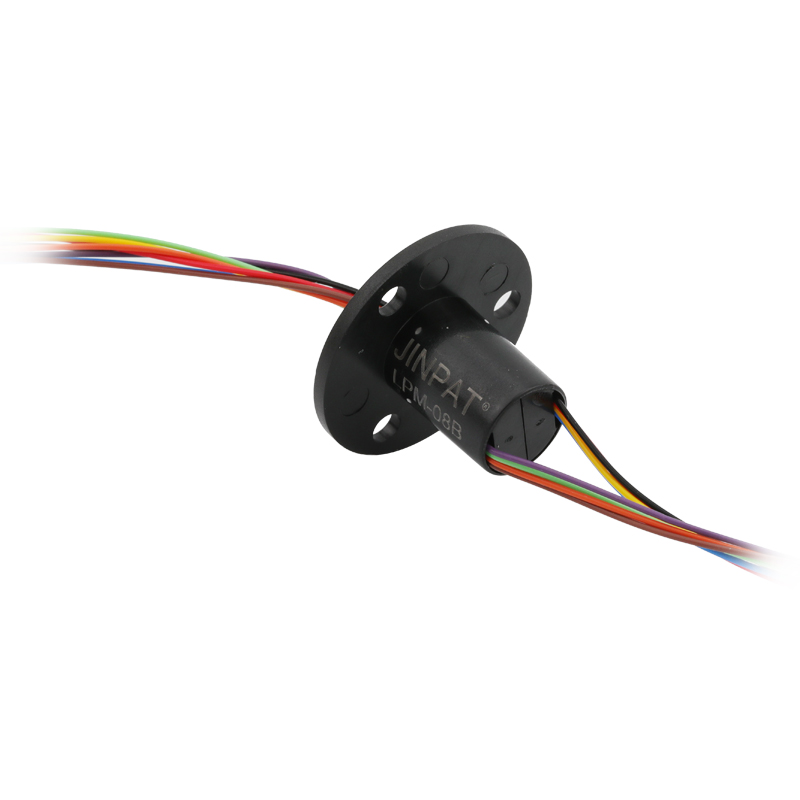

LPM-08A Miniature Capsule Slip Rings

quota

copy Link

Facebook

Numero di circuiti 8

Attuale 1-2A

Tensione 240V

Opzionale It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc

Consult immediately

DettaglioInstallazioneRecensione(0)

LPM-08A Miniature Capsule Slip Rings

The LPC-08A capsule slip ring is a standard, off-the shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor to simplify electrical

connections. Using a 90° V-groove ring design for each ring, the LPC-08A provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 1-8 circuit models.

Electronic & Electruc			Mechanical
Circuits	Total	8CKT	Working Speed	0~300rpm
	Detail	8X1A(You can go through 2A under certain circumstances )	Contact Material	Gold to Gold
Rating Voltage		110VAC/DC	Housing Material	Engineering plastics
Dielectric Strength		≥200VAC@50Hz(P) ≥100VAC@50Hz(S)	Lead Wire Length	Stator: 250士5mm Rotor: 250士5mm
Insulation Resistance		≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S)	Dynamic Resistance Fluctuation Balue	≤35mΩ
Enviromental			Remarks
Working Temperature		-20°C~+60°	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP40	Note:"P" stands dor power, "S" stands for signal
