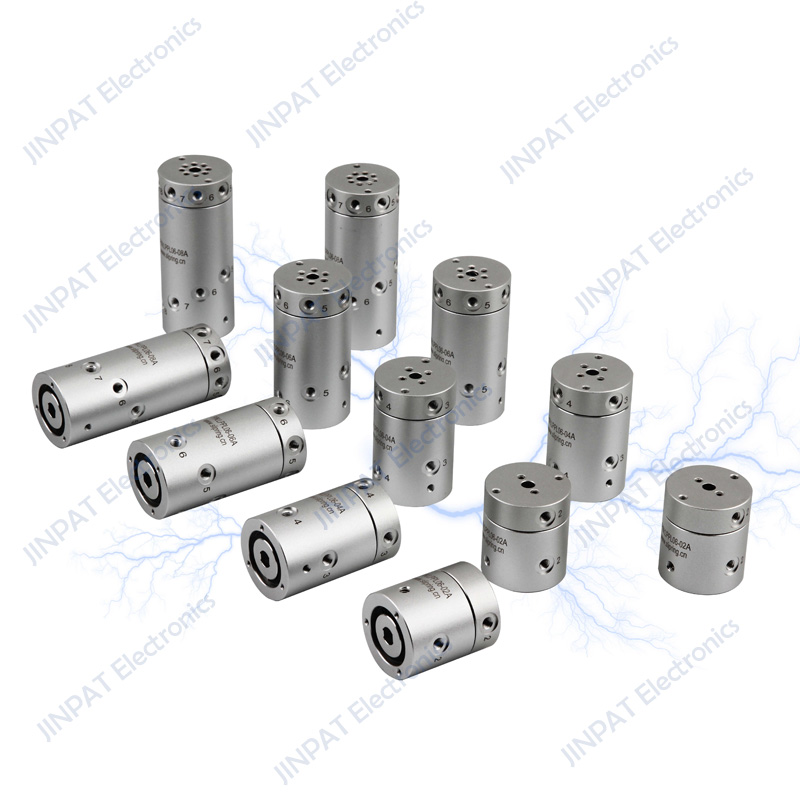

Rotary Union Joints

Number of Circuits 2/4/6/8/10/12
Current 2A each circuit or higher
Insulation Resistance ≥500VAC@50Hz
Wire Length 250mm(optional)
Voltage 240VAC/DC
Consult immediately
DetailInstallationReview(0)

The pneumatic rotary union can perform rotation of 360 degrees. The medium includes inert gas such as compressed air, steam, vacuum, nitrogen, hydrogen, etc. It can integrate slip ring to transport various control signals. The sealing surface and sealing ring are made of special materials, with the advantages of wear resistance, long life, corrosion resistance, and no leakage. Customers can install LPP pneumatic rotary union independently according to the application environment.

Rotary unions are key mechanical component to allow certain media like fluid and gas to pass from a stationary part to a rotating part. JINPAT Electronics provides high quality rotary unions, also known as rotary joints, swivel joints and rotating unions. JINPAT has large standard rotary union production lines covering products to match various media type, speed, pressure, channel number and channel diameter, etc. And with fine sealing materials and advanced sealing, JINPAT rotary unions have intact sealing and ensure no leakage occurs. The connecting joint has smooth rotation. Our rotary unions are able to attain a smooth and lasting rotating while passing the media in a safe and reliable way. JINPAT Electronics has a large production capacity and rigorous inspection system. We guarantee a short delivery time and good product quality. In case that our standard rotary union cannot cover your requirements, you can request a custom rotary union solution by talking to our technical persons.

Rotary unions have wide application in the industrial field. Generally speaking, a single function to pass media from fixed end to rotating end might not be enough for today’s industrial production. An integrated solution with electrical slip ring is strongly recommended. JINPAT Electronics has many successful custom cases on integrated electrical rotary union that can handle mixed transmission of power, signals, fluid and gas. JINPAT rotary unions can be integrated with Ethernet slip ring. Such integrated is unassailable in industrial practice.

Contact JINPAT to get a product catalogue now! Feel free to tell us your demands and JINPAT will surely bring you a satisfactory solution.



Features:

◎Continuable medium: compressed air, nitrogen, and other inert gases;

◎Small size, light weight, low torque

◎Integrated power, switching signal, Ethernet, USB, industrial bus, sensor and other signals;

◎Customized rotary joint parameters and integrated slip ring can be customized according to customer requirements;

◎The joint and pipe diameter can be customized according to customer requirements;


Optional

◎Inner diameter & Outer diameter/Number of circuits/Current & Voltage/Wire length/Housing material and color/Protection level/Signal and power can be transmitted separately or in combination


PS:Standard Pneumatic Rotary Unions   (2~36 channels)(Electrical Slip Rings Excluded)
Model Code

Number of

Circuits

MediumBore DiameterMaximum

Working

Pressure

Rotating SpeedConnector TypeSizeTorqueExpected Life SpanLead TimeDetails
LPPL06-02A3Compressed Air6'-0.15Kpa1Mpa0~100rpmM5φ6*φ40*47≤0.6N·m

2000万以上

≥20 million

2-32021428
LPPL06-04A4Compressed Air6'-0.15Kpa1Mpa0~100rpmM5φ6*φ40*63≤0.8N·m

2000万以上

≥20 million

2-32021428
LPPL06-06A6Compressed Air6'-0.15Kpa1Mpa0~100rpmM5φ6*φ40*79≤1.0N·m

2000万以上

≥20 million

2-32021428
LPPL06-08A8Compressed Air6'-0.15Kpa1Mpa0~100rpmM5φ6*φ40*95≤1.3N·m

2000万以上

≥20 million

2-32021428
LPPL06-10A10Compressed Air6'-0.15Kpa~1Mpa0~100rpmM5φ6*φ50*122≤1.6N·m

1000-2000万

10~20 million

2-32021428
LPPL06-12A12Compressed Air6'-0.15Kpa~1Mpa0~100rpmM5φ6*φ50*141≤2.0N·m

1000-2000万

10~20 million

2-32021428
LPPL06-16A16Compressed Air6'-0.15Kpa~1Mpa0~100rpmM5φ6*φ56*204.5≤2.5N·m

1000-2000万

10~20 million

2-32021428
LPPL010-24A24Compressed Air10'-0.15Kpa~1Mpa0~30rpmG1/8φ10*φ145*446≤25N·m

1000万以上

≥10 million

5-62021428
LPPL018-30A30Compressed Air18'-0.15Kpa~1Mpa0~20rpmG1/8φ18*φ170*627≤30N·m

1000万以上

≥10 million

6-82021428
LPPL021-36A36Compressed Air21'-0.15Kpa~1Mpa0~10rpmG1/8φ21*φ220*842≤30N·m

1000万以上

≥11 million

6-82021428
Pneumatic Rotary Unions with Through Bore Design (φ15-φ150) (Electrical Slip Rings Excluded)
Model CodeNumber of CircuitsMediumBore DiameterMaximum

Working

Pressure

Rotating SpeedConnector TypeSizeTorqueExpected Life SpanLead TimeDetails
LPPL015-08A8Compressed Air150~1Mpa0~500rpmG1/4φ15*φ135*265≤10N·m2000万以上

≥20 million

3-4
LPPL025-02A2Compressed Air250~0.6Mpa0~20rpmG3/8φ25*φ98*116≤5N·m

2000万以上

≥20 million

3-4
2021428
LPPL040-02A2Compressed Air400~0.6Mpa0~5rpmG1/8φ40*φ119*94.2≤8N·m

2000万以上

≥20 million

3-42021428
LPPL060-01A1Compressed Air600~1Mpa0~1rpmG3/4φ60*φ216*126≤10N·m

2000万以上

≥20 million

4-52021428
LPPL090-02A2Compressed Air900~0.8Mpa0~20rpmG1/2φ90*φ206*122.6≤20N·m

2000万以上

≥20 million

4-52021428
LPPL120-02A2Compressed Air1200~0.6Mpa0~10rpmG1/2φ120*φ230*137
≤30N·m

2000万以上

≥20 million

4-52021428
LPPL150-01A1Compressed Air1500~0.8Mpa0~10rpmG1/2φ150*φ265*116
≤30N·m

2000万以上

≥20 million

4-52021428
Hydraulic Rotary Unions (Electrical Slip Rings Excluded)
Model Code

Number of   Circuits

MediumBore DiameterMaximum

Working

Pressure

Rotating SpeedConnector TypeSizeTorqueExpected Life SpanLead TimeDetails
LPPL000-02L2
Water/
0~0.5Mpa0~120rpmG1/4,M6φ67*100≤80N·m

undefined

≥10 million

4-52021428
LPPG014-02L2Hydraulic Oil140~25Mpa0~10rpm

G1/2


φ112*φ14*149≤200N·m

undefined

≥10 million

4-52021428
LPPG018-04L4Hydraulic Oil180~25Mpa0~25rpmG1/2φ135*φ18*232≤200N·m

undefined

≥10 million

4-52021428
Electric Pneumatic Integrated Slip Rings
Model Code

Number of

Circuits

MediumBore DiameteMaximum

Working

Pressure

Rotating SpeedConnector TypeSizeTorqueExpected Life SpanLead TimeDetails
LPPL000-02A-0407-1505-32S-E2-FO012
Compressed Air/
0~0.6Mpa0~10rpmG3/8
φ140*494.7≤8N·m

undefined

≥10 million

4-52021428
LPPL000-08A-1219-0410-54028Compressed Air/0~0.6Mpa0~1rpm

M5

G1/4

φ164*441
≤8N·m

undefined

≥10 million

4-52021428
LPPL000-16A-660116Compressed Air/0~1Mpa0~75rpmM6φ106*575≤5N·m

undefined

≥10 million

4-52021428
