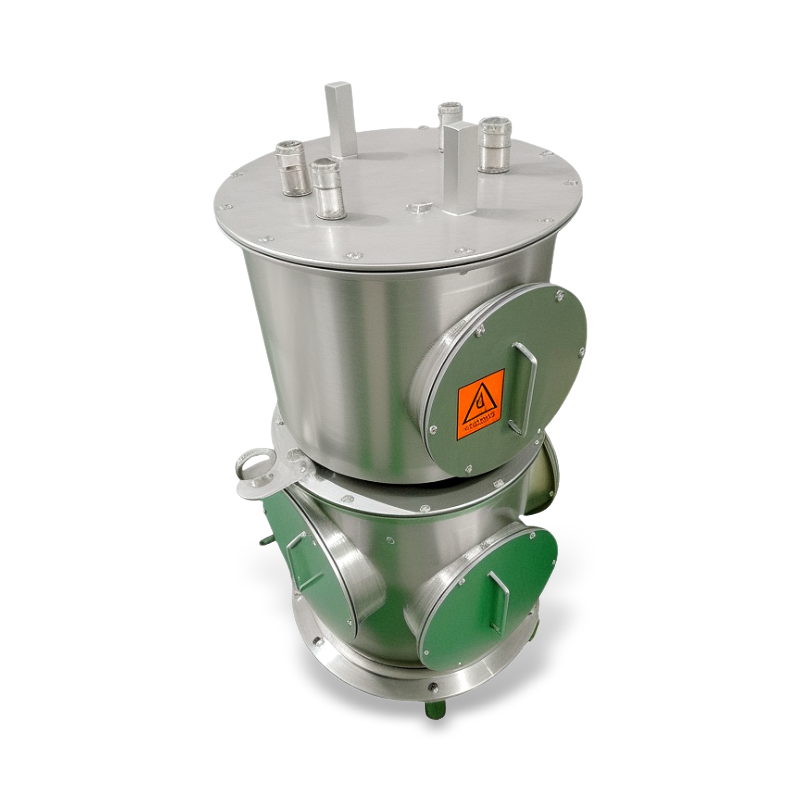

Multi-Certified Explosion-Proof Slip Ring
This globally certified High Current Slip Ring(LPA000-05200-01PE-0563Ex) meets ATEX (EU), IECEx (International), UL (USA), and CNEx (China) standards, featuring ExdⅡ explosion-proof rating for volatile environments. Equipped with imported graphite brushes, it enables simultaneous high-power and signal transmission with precision. Ideal for hazardous applications like marine drilling rigs, chemical plants, and dust-heavy facilities, its fail-safe design ensures long-term stability and safety.
Electronic & Electric | Mechanical | |||
Circuits | Total | 5+1 | Working Speed | 0~5RPM |
Detail | 5*200A+1*PE | Bore Diameter | / | |
Rating Voltage | 440VAC | Contact Material | Imported Specialized Copper Graphite | |
Dielectric Strength | ≥2500V@60Hz | Shell Material | Stainless Steel | |
Insulation Resistance | ≥500MΩ@1000VDC | Maintainability | Regular maintenance | |
Environment | Remarks | |||
Working Temperature | -25°C~+45°C | Application | Marine Drilling Rigs/Chemical Plants/Dust-Heavy Facilities | |
Explosion Proof Grade | Ex D ⅡB T3 | Other | / | |
Signal Channel Parameters | ||||
Rated current | 5*63A | Contact Material | Precious Metal | |
Rating Voltage | 220VAC | Maintainability | Maintenance-free | |
Dielectric Strength | ≥1000V@50Hz | Insulation Resistance | ≥500MΩ@500VDC | |
JINPAT Slip Rings: Powering Safety and Precision in Extreme Conditions.
