Inertial Navigation System Slip Ring

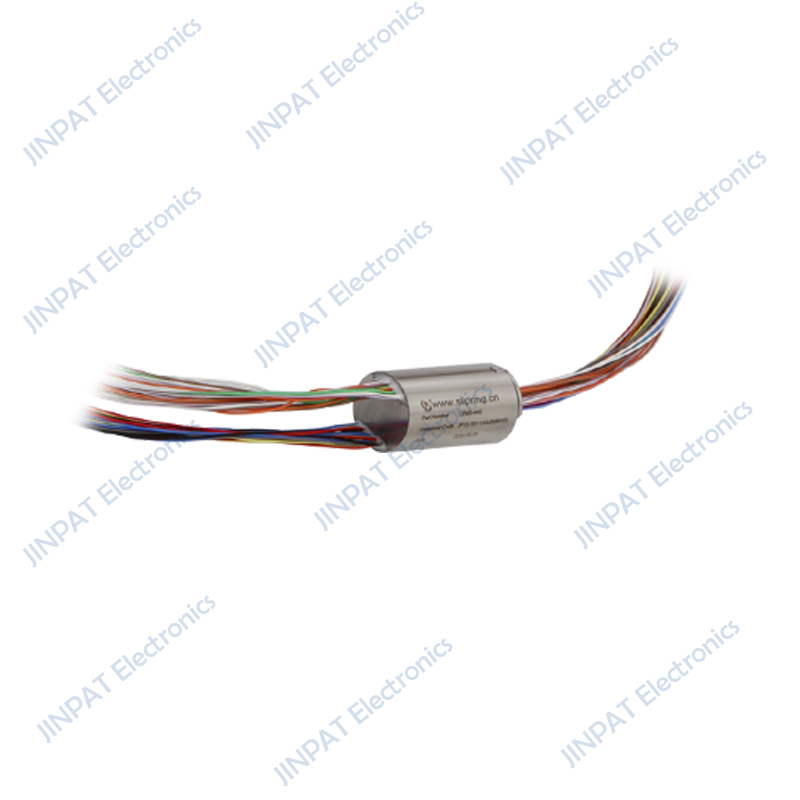

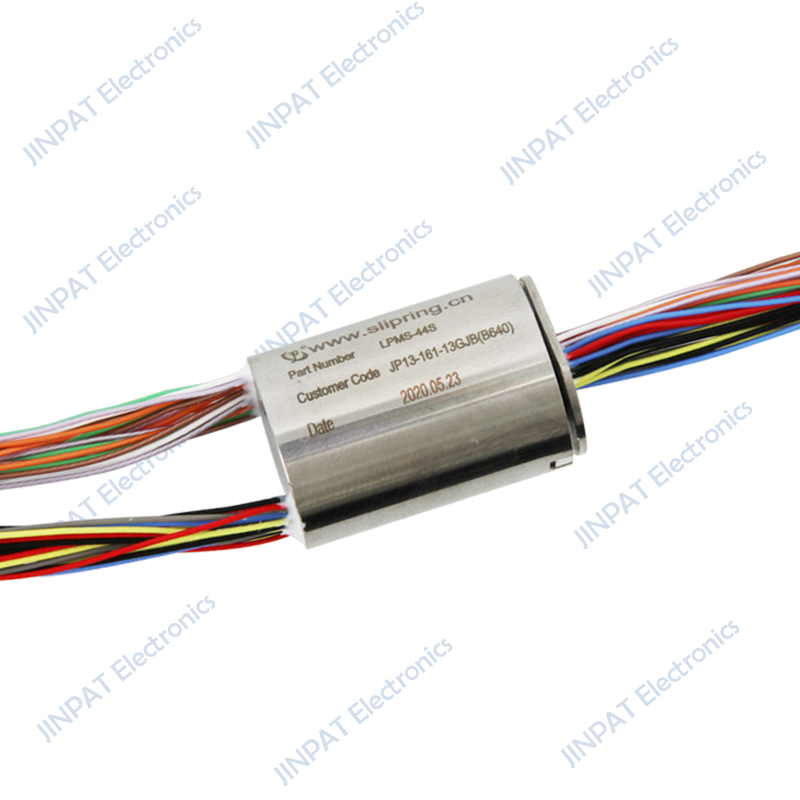

JINPAT LPMS-44S is a custom slip ring solution with independent patent. This is a super miniature slip ring specially designed for inertial navigation system. There are 44 signal channels in this very compact size slip ring. The amazing thing is, with a length of 23mm, and a diameter of 16mm, the super miniature slip ring is able to integrate such a great number of channels. JINPAT adopts high precision machine technique to produce super miniature slip rings, making sure they have excellent uniformity and high precision.
JINPAT LPMS-44S for its super mini size and signal capacity, the slip ring can be applied in demanding electronic systems like military devices and aviation industry. Meantime, the super miniature slip ring has super low friction and therefore able to sustain a smooth, quiet and lasting rotation. This custom slip ring model is also the epitome of advanced slip ring manufacture technology.

LPMS-44S product features:

• Compact design in length, 44 tracks within 21mm.

• Tiny in outer diameter size, 44 tracks within 16mm.

• Superior performance,remaining stable in 300rpm.

• Moisture resistant with waterproof sealant, up to 95%RH.

• Transmitting over 20 kinds of signals, such as Ethernet, USB2.0,SDI video, Sensor Signal, etc.

LPMS-44S slip ring parameter table:

Electronic & Electric			Mechanical
Circuit	44 * common signal		Working Speed	0~300rpm
Working Voltage	48VAC/VDC		Inner Diameter	/
Dielectric Strength	Between circuits≥100VAC@50Hz		Contact	Precious Metal
Insulation	10MΩ@100VDC		Housing	Stainless Steel
Electrical Noise	≤35mΩ(5rpm)		Wire Length	Rotor:250±5mm Stator:250±5mm
Environment			Remark
Temperature		-20°C~+60°C	Application		Electro-optical pod/ Military Rotary Table
Humidity		≤95%RH	Life		5 million turns
