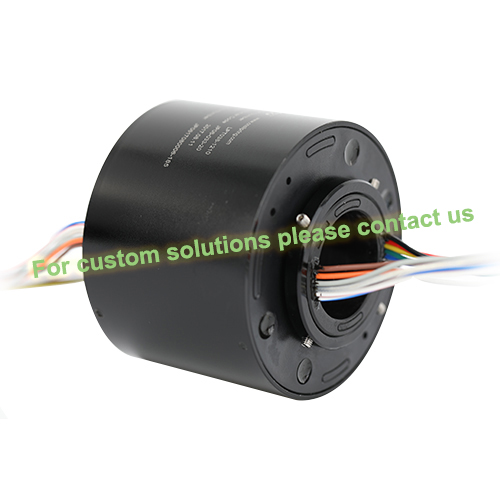

SPT050-104-1210-Through-bore Slip Rings
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 12CKT | Working Speed | 0~400rpm |
| Detail | 12X10A | Inner Diameter | Φ50mm | |
| Rating Voltage | 500VAC/dc | Contact Material | Fiber Brush | |
| Dielectric Strength | 1500VAC@60Hz | Housing Material | Fibre-reinforced plastics | |
| Insulation Resistance | ≥1000MΩ@500VDC | Lead Wire Length | Stator:2m Rotor:2m | |
| Environment | Remarks | |||
| Working Temperature | -40°C~+80°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP54(Horizontal installation) | |||
SPT050-104-1210-Outline Drawing
Havn't found standard size of large current slip rings to fit my application?
1) View "Customized Solutions", you can find more large current slip rings solutions.
2) Customize your dimension for large current slip rings and Contact us : sales@electricslipring.com
