Description

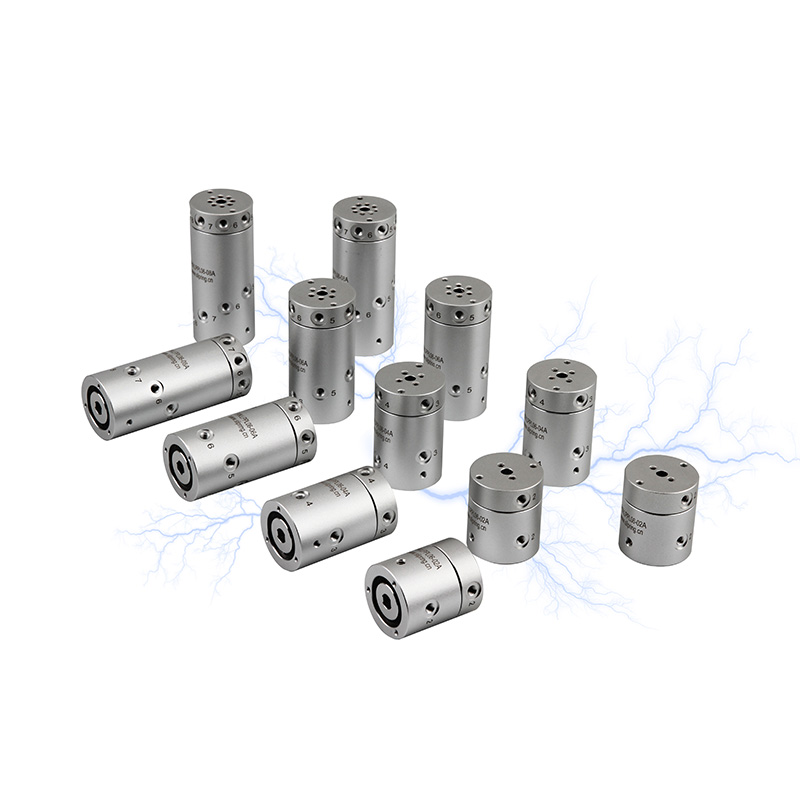

A pneumatic rotary joint is a mechanism used to transfer fluid (under pressure or vacuum) from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection.
Pneumatic rotary joint are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, rotary unions may integrate multiple passages and handle different types of fluid simultaneously.
Rotary Unions & Joints Spec. | Mechanical Data | ||
Max. Operating Pressure | Positive Pressure 1Mpa, Vacuum -1.5kPa | Working Speed | 0~100rpm |
Medium Type | Air | Working Temp. | -20°C~+60°C |
Passages(Gas/Flow) | 12 in 12 out | Work Humidity | ≤60%RH |
Pipe Size | ∅4mm pipe, M5 port | Housing Material | Aluminum Alloy |
Torque | ≤4.0 N.m | IP Grade | IP51 |
LPPL06-12A-EN-Outline Drawing
