Supporting the Growth of Smart Ports with Advanced Slip Ring Technology

Asia has become one of the world’s most active regions for port development and container transportation.

Major ports across countries such as:

• China

• Japan

• South Korea

• Singapore

• Malaysia

• Vietnam

are continuously upgrading their terminal equipment to improve:

• Cargo handling efficiency

• Automation level

• Operational safety

• Energy management

Modern container terminals increasingly depend on advanced crane systems, including:

• Ship-to-shore (STS) cranes

• Quay cranes

• Rubber-tired gantry cranes (RTG)

• Rail-mounted gantry cranes (RMG)

These large machines require reliable rotary electrical transmission systems to maintain continuous operation.

A port crane slip ring plays a critical role by transferring:

• High-power electricity

• Control signals

• Communication data

between the stationary and rotating structures of crane equipment.

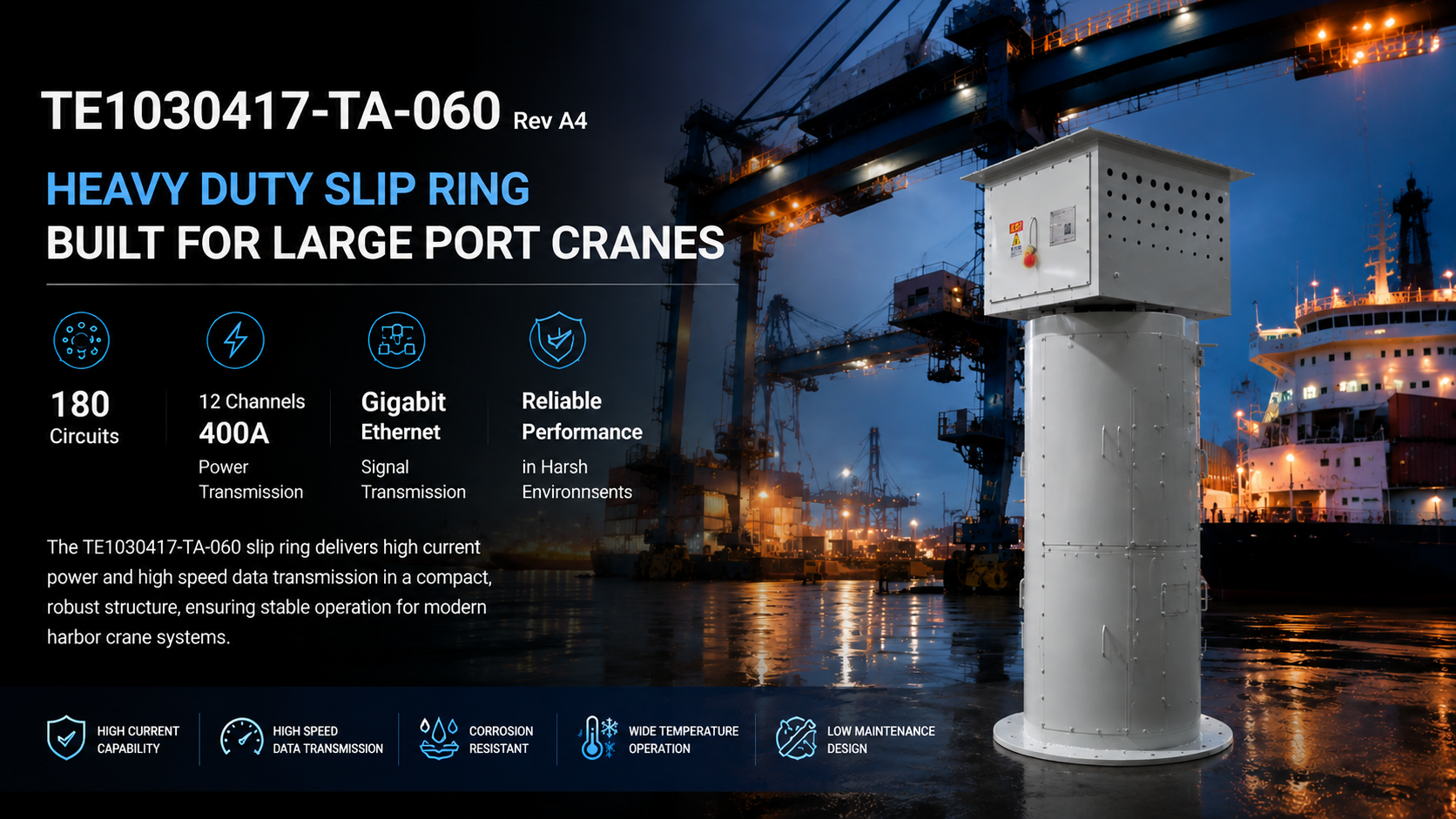

The JINPAT TE1030417-TA-060 Rev A4 is designed for large-scale port crane applications where high current capacity, multiple circuits, and stable data transmission are essential.

Why Port Cranes Need High-Performance Slip Ring Systems

Unlike standard industrial machinery, port cranes operate under demanding conditions.

A typical container crane requires continuous movement during:

• Container loading

• Container unloading

• Boom operation

• Trolley movement

• Crane positioning

During these processes, electrical systems must maintain stable transmission while the crane structure rotates.

Traditional cable systems may face limitations such as:

• Cable twisting during rotation

• Reduced service life

• Difficult maintenance

• Restricted movement range

A dedicated crane slip ring provides a more efficient solution by allowing unlimited rotary movement while maintaining electrical connection.

For modern automated terminals, the slip ring is not only a power transmission component but also a key part of the crane communication system.

High Current Slip Ring Designed for Large Container Cranes

Large container cranes require significant electrical power to operate lifting mechanisms and auxiliary systems.

The TE1030417-TA-060 Rev A4 provides a powerful electrical transmission solution with:

17 High Current Circuits

The product integrates:

• 17 high-current circuits

• 12 circuits rated at 400A

This configuration enables stable power delivery for heavy-duty crane equipment.

High-current slip rings used in port applications must maintain:

• Low electrical resistance

• Reliable contact performance

• Long operating lifetime

• Stable operation under continuous load

The TE1030417-TA-060 Rev A4 is developed to meet these requirements for large harbor lifting equipment.

180 Circuits for Intelligent Port Crane Systems

The development of smart ports has increased the demand for complex electrical integration.

Modern crane systems require multiple channels for:

• PLC control

• Position sensors

• Safety monitoring

• Camera systems

• Industrial communication

• Equipment diagnostics

The TE1030417-TA-060 Rev A4 provides:

180 Integrated Circuits

By combining power and signal transmission in one rotary unit, the slip ring helps simplify crane electrical architecture.

Advantages include:

• Reduced wiring complexity

• Easier system integration

• Improved maintenance efficiency

• Higher equipment reliability

For automated container terminals, multi-circuit slip rings help support advanced crane control systems.

Gigabit Ethernet Slip Ring for Smart Terminal Communication

Digital communication has become a core requirement for modern port automation.

Asian ports are increasingly adopting:

• Remote crane operation

• Automated container handling

• Real-time equipment monitoring

• Intelligent scheduling systems

These applications require fast and stable data communication.

The TE1030417-TA-060 Rev A4 supports:

Gigabit Ethernet Signal Transmission

This enables reliable communication between rotating crane structures and stationary control systems.

By integrating:

• High-power transmission

• Signal circuits

• Ethernet communication

the slip ring provides a complete rotary connection solution for intelligent crane platforms.

Large-Scale Design for Heavy Port Equipment

Port crane systems require slip rings with sufficient mechanical capacity to support large electrical configurations.

The TE1030417-TA-060 Rev A4 features:

Product Height: 2.2 meters

The large structure allows integration of:

• Multiple power channels

• Numerous signal circuits

• Communication interfaces

Compared with conventional industrial slip rings, large port crane slip rings must handle:

• Higher electrical loads

• More complex control requirements

• Longer continuous operating periods

The large-scale design makes it suitable for heavy-duty terminal equipment.

Application in Asian Container Terminals

The TE1030417-TA-060 Rev A4 is suitable for various port crane systems.

Ship-to-Shore (STS) Container Cranes

STS cranes are essential equipment in large container ports.

The slip ring supports:

• Crane rotation systems

• Power transmission

• Control communication

• Automation functions

Rubber-Tired Gantry Cranes (RTG)

RTG cranes require reliable electrical systems for container stacking operations.

High-performance slip rings help maintain:

• Stable operation

• Accurate control

• Efficient container handling

Rail-Mounted Gantry Cranes (RMG)

Automated rail terminals depend on precise electrical transmission.

The TE1030417-TA-060 Rev A4 supports integrated power and communication requirements.

Supporting Asia’s Port Automation Development

Many Asian ports are moving toward intelligent terminal solutions.

The future of port equipment will focus on:

• Higher automation

• Remote operation

• Digital monitoring

• Energy efficiency

As crane systems become more advanced, electrical transmission components must also evolve.

A reliable port crane slip ring helps ensure:

• Continuous equipment operation

• Stable data exchange

• Reduced maintenance requirements

For crane manufacturers and port equipment integrators, selecting the right rotary electrical solution is essential for long-term performance.

Why Choose JINPAT Slip Ring Solutions for Port Applications?

JINPAT provides customized slip ring solutions for demanding industrial environments.

For large port cranes, JINPAT offers:

High Current Transmission Capability

Designed for:

• Heavy lifting equipment

• High-power systems

• Continuous operation

Multi-Function Integration

Combining:

• Electrical power

• Control signals

• Ethernet communication

within one compact rotary connection system.

Customized Engineering Support

Solutions can be developed according to:

• Crane structure

• Electrical requirements

• Installation space

• Operating environment

Conclusion

The rapid development of Asian smart ports requires reliable and efficient electrical transmission technology.

The JINPAT TE1030417-TA-060 Rev A4 high-performance port crane slip ring provides:

• 180 total circuits

• 17 high-current channels

• 12×400A power transmission

• Gigabit Ethernet communication

• 2.2-meter large industrial structure

Designed for ship-to-shore cranes, container terminals, RTG systems, and automated port equipment, this heavy-duty slip ring solution helps improve crane reliability and support the future of smart port operations.
