With the rapid development of intelligent manufacturing and industrial automation, modern machinery requires more reliable solutions for transmitting power and signals between rotating and stationary components. Traditional cable connections often suffer from twisting, wear, and limited service life during continuous rotation.

A through bore slip ring provides an effective solution by enabling continuous electrical transmission while allowing mechanical rotation.

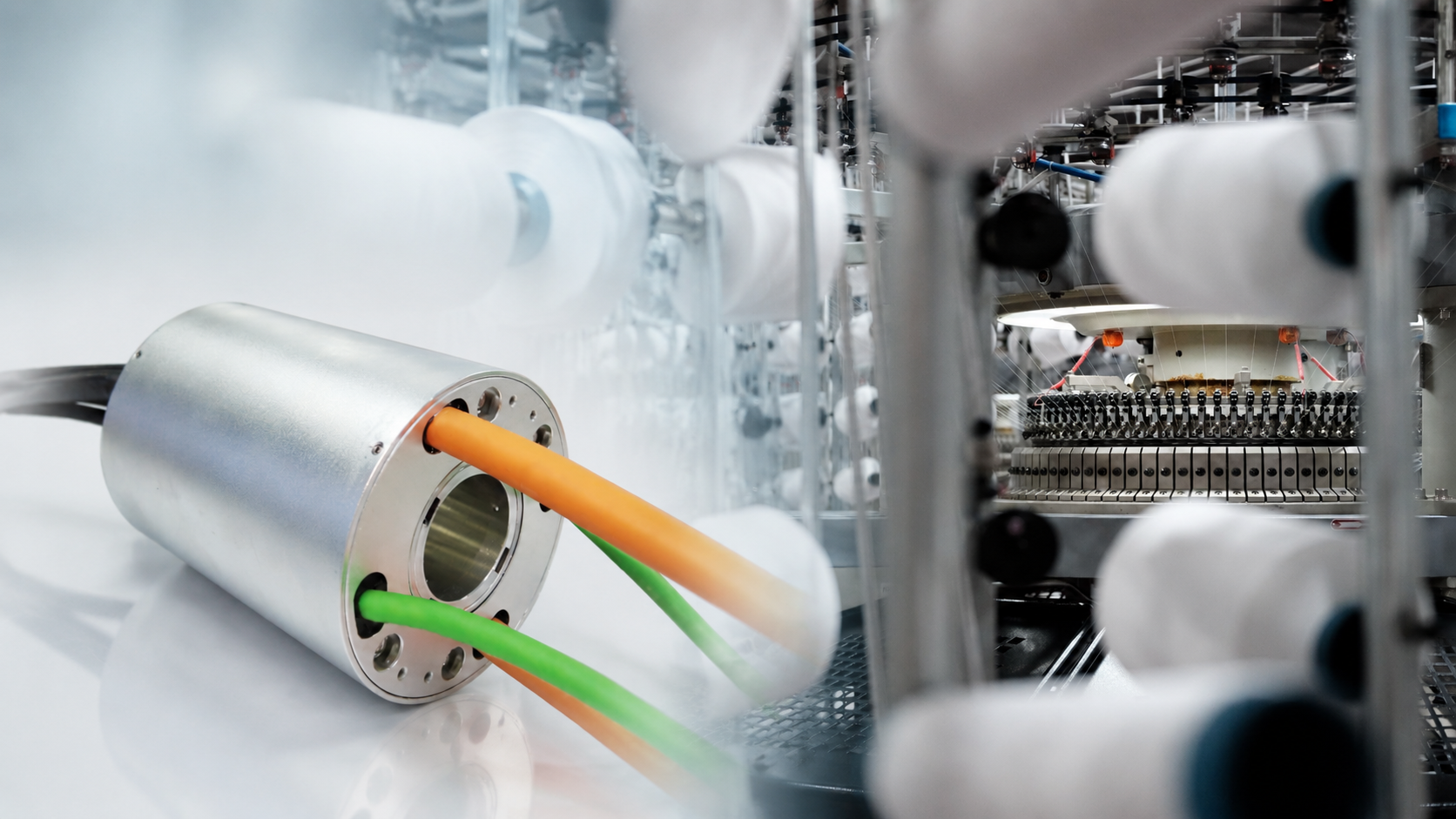

The LPT038-0815 through bore slip ring is specially designed for automation equipment requiring multiple power circuits, encoder signals, and electromagnetic interference protection. It integrates power transmission, signal transmission, and shielding functions into a compact rotary electrical connector.

Multi-Channel Transmission for Complex Automation Systems

The LPT038-0815 slip ring features a high-density electrical configuration:

• 8 circuits 15A power transmission

• 16 circuits encoder signal transmission

• 3 circuits shielding channels

This integrated design allows industrial equipment to transmit both high-current power and precise control signals through a single rotary interface.

Compared with traditional wiring methods, the LPT038-0815 reduces cable complexity and improves system reliability.

It is suitable for applications requiring simultaneous transmission of:

• Motor power supply

• Encoder feedback signals

• Control signals

• Shielding connections

38mm Through Bore Design for Flexible Mechanical Integration

One of the key advantages of the LPT038-0815 is its 38mm through bore structure.

The hollow shaft design allows cables, shafts, pneumatic tubes, or other mechanical components to pass through the center of the slip ring.

This structure provides several benefits:

• Space-saving installation

• Easier mechanical integration

• Improved equipment layout flexibility

• Reduced wiring complexity

The through bore design makes it an ideal rotary electrical connector for compact automation systems.

Enhanced Signal Stability with Shielding Design

Industrial environments often contain electromagnetic interference sources such as:

• Servo motors

• Inverters

• High-frequency controllers

• Industrial power systems

These factors can affect sensitive signals, especially encoder feedback signals.

The LPT038-0815 includes 3 dedicated shielding channels and features a conductive oxidation treated aluminum housing.

The shielding design helps:

• Reduce electromagnetic interference

• Improve signal transmission stability

• Protect encoder communication accuracy

• Enhance equipment operational reliability

This makes the slip ring especially suitable for precision automation equipment.

Durable Aluminum Housing with Conductive Oxidation Treatment

The outer housing of the LPT038-0815 is processed with conductive oxidation technology.

This surface treatment provides:

• Better electrical conductivity

• Improved electromagnetic shielding performance

• Enhanced corrosion resistance

• Professional industrial appearance

The lightweight aluminum structure also helps reduce the overall equipment weight while maintaining mechanical strength.

Stable Operation Under Industrial Temperature Conditions

The LPT038-0815 supports an operating temperature range of:

-20°C to +60°C

This allows reliable operation in various industrial environments, including:

• Factory automation systems

• Robotic equipment

• Inspection machines

• Rotary processing equipment

The stable temperature performance ensures continuous operation in demanding manufacturing conditions.

IP50 Protection Level for Industrial Applications

The LPT038-0815 provides IP50 protection, offering basic protection against solid particles and ensuring reliable operation when installed inside industrial equipment or protective enclosures.

For applications requiring higher environmental protection, customized protection solutions can be developed according to customer requirements.

Applications of LPT038-0815 Through Bore Slip Ring

Due to its multi-channel transmission capability and compact through bore design, the LPT038-0815 is widely used in:

Industrial Robots

Industrial robots require stable power and encoder signal transmission for rotating joints and motion control systems.

The LPT038-0815 helps maintain continuous electrical connection during robot movement.

Rotary Tables

Automated rotary platforms often require both power supply and feedback signal transmission.

The through bore slip ring provides a compact and reliable connection solution.

Automated Inspection Equipment

Precision inspection systems require stable signal communication.

The encoder signal transmission capability of LPT038-0815 supports accurate position feedback.

Intelligent Manufacturing Equipment

Modern smart factories require reliable rotary electrical connectors for automated production systems.

The LPT038-0815 helps improve equipment efficiency and reduce maintenance requirements.

Why Choose LPT038-0815 Through Bore Slip Ring?

The main advantages include:

✔ 38mm through bore structure
✔ 8 circuits 15A power transmission
✔ 16 encoder signal circuits
✔ 3 shielding channels
✔ Conductive oxidation aluminum housing
✔ IP50 protection rating
✔ Operating temperature: -20°C to +60°C
✔ Designed for industrial automation applications

Conclusion

The LPT038-0815 through bore slip ring is a high-performance rotary electrical connector designed for modern automation equipment.

By combining multi-channel power transmission, encoder signal communication, shielding capability, and flexible through bore installation, it provides a reliable solution for industrial robots, rotary tables, inspection equipment, and intelligent manufacturing systems.

For automation manufacturers seeking a stable and compact rotary connection solution, the LPT038-0815 offers excellent performance, integration flexibility, and long-term reliability.
